— Core Process Equipment

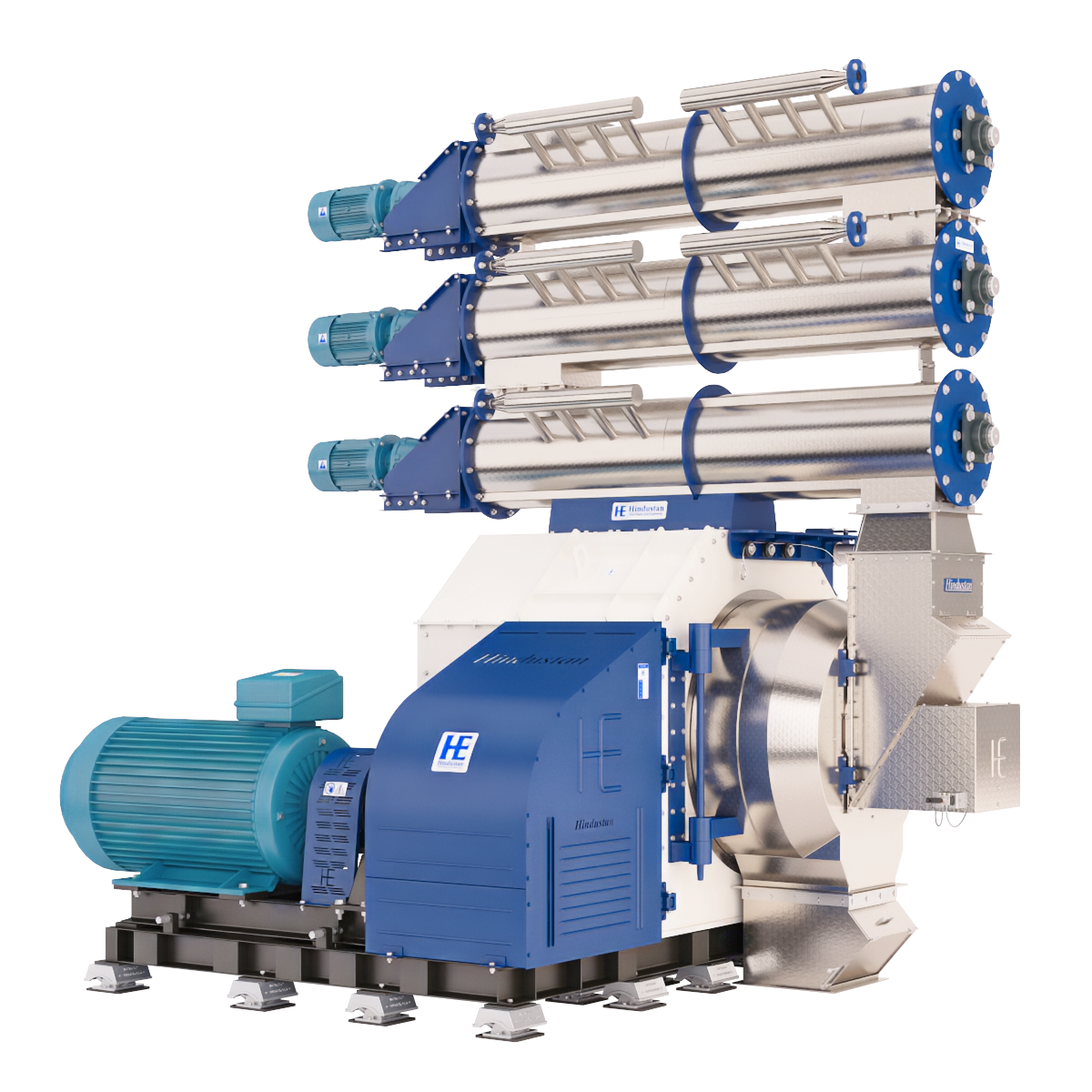

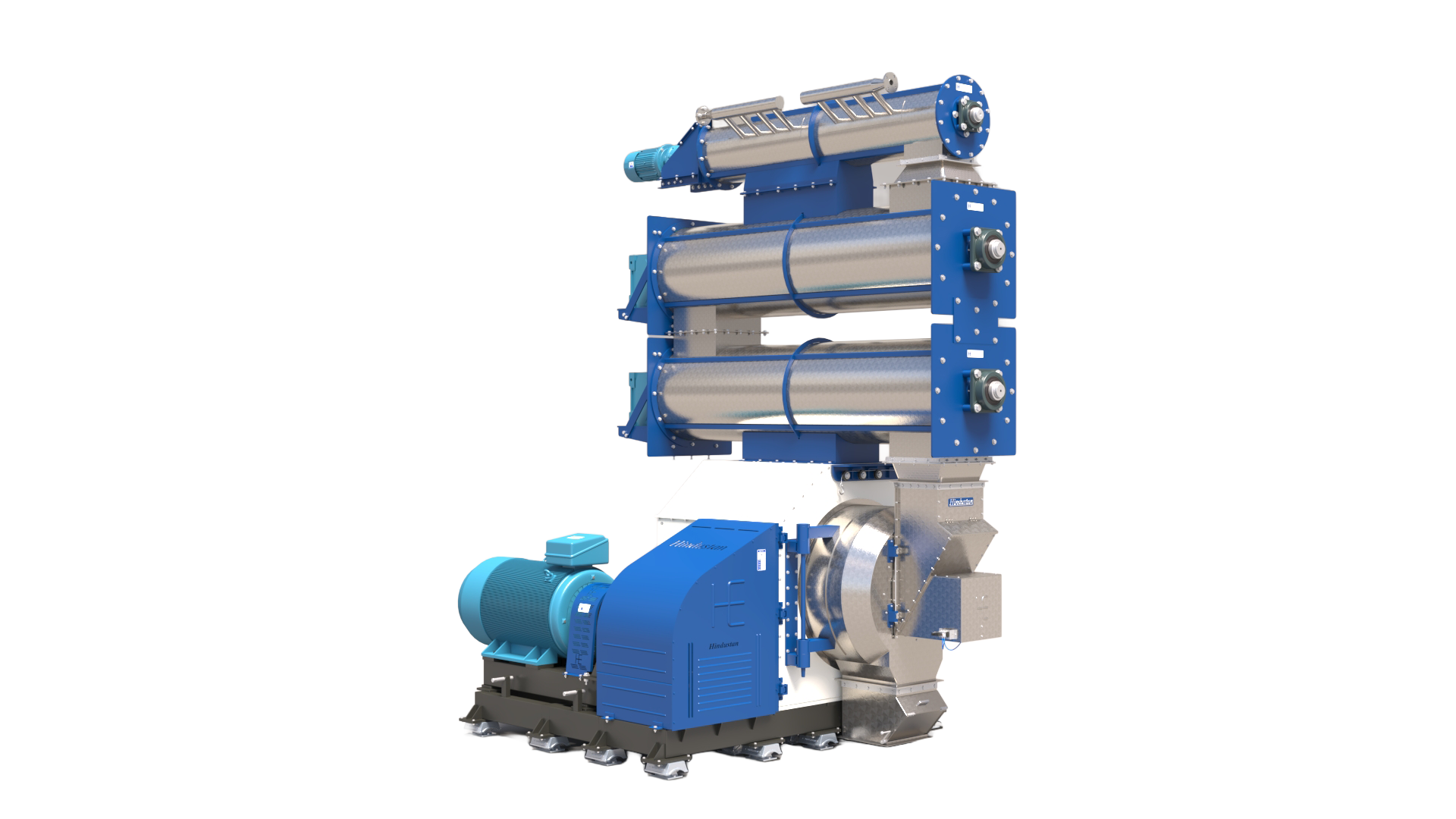

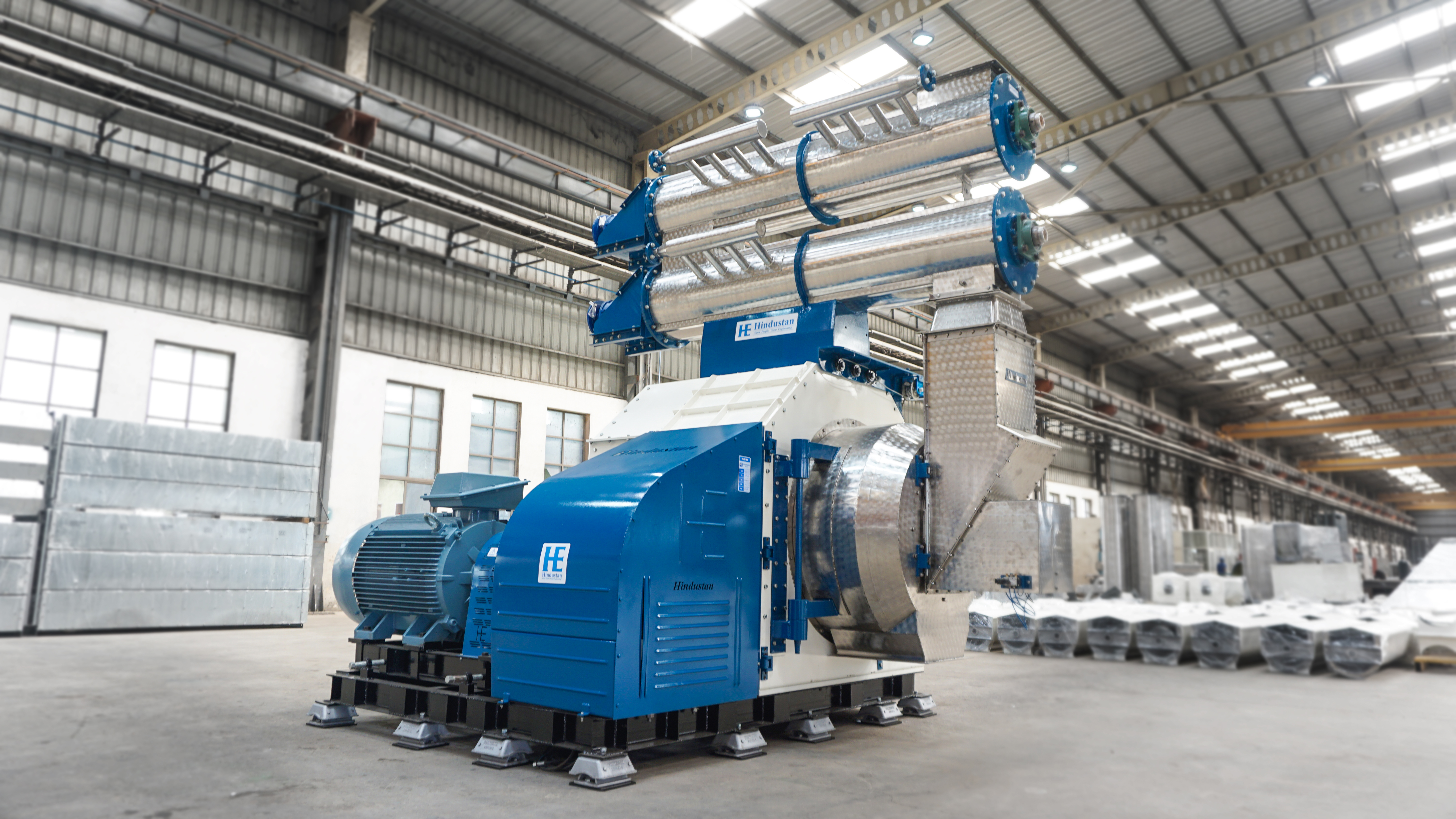

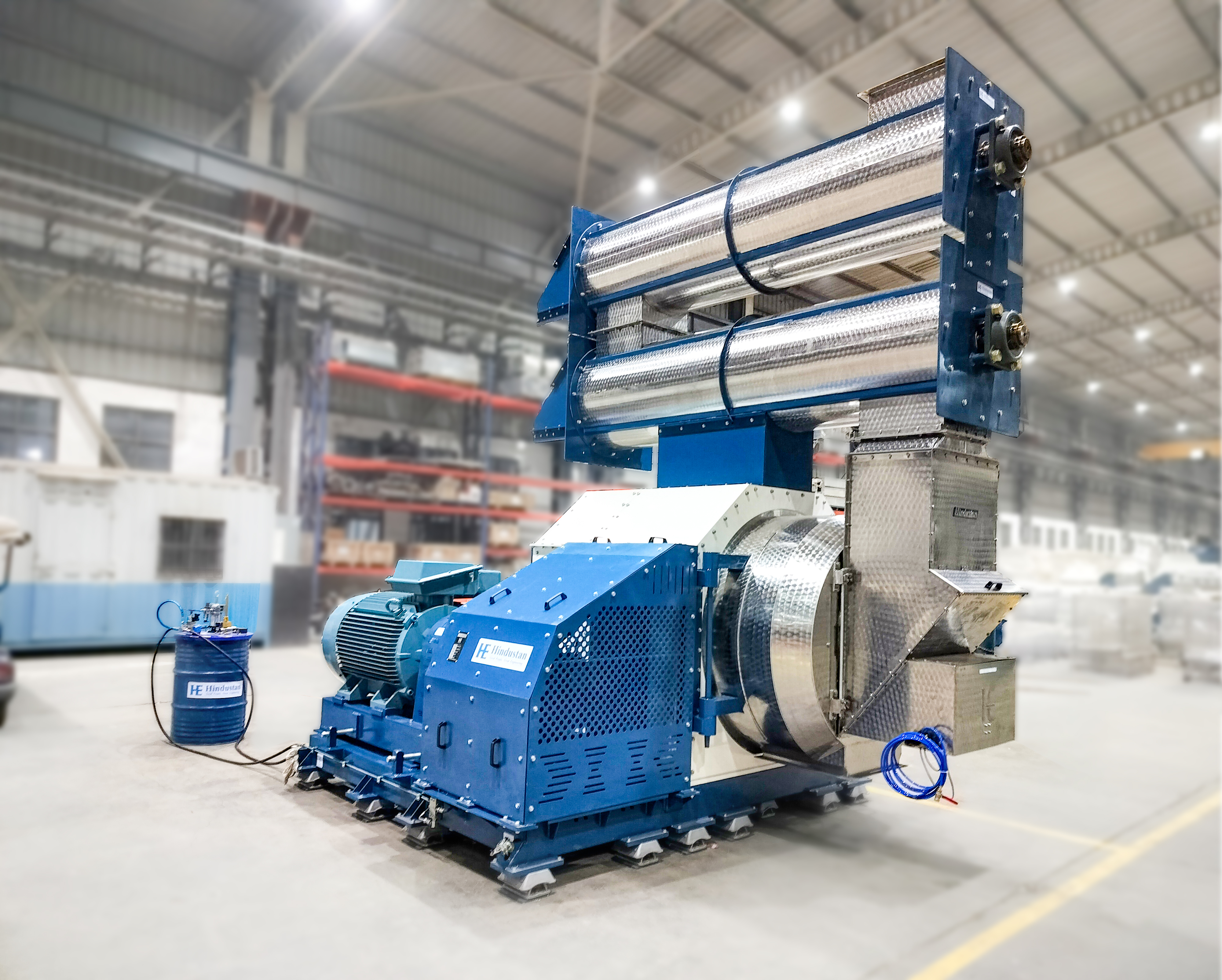

Pellet Mill
We are a leading company with one of the largest and most advanced high-tech workshops in India, equipped with state-of-the-art machinery to ensure superior quality and high accuracy in pellet mill manufacturing. HEPL pellet mills are designed and manufactured along with their accessories to deliver excellent pelleting solutions tailored to specific customer requirements. We manufacture and supply a complete range of pellet mills with capacities ranging from 2 TPH to 30 TPH for applications in cattle feed, poultry feed, aqua feed, biomass plants, and fertilizer/manure production.
Product Applications
- Cattle Feed
- Poultry Feed
- Aqua Feed
- Solvent Plant
- Bio-mass Plant
- Fertilizer / Manure
Standard Features
- Roller Assembly with gear type to adjust precise gap between rollers & die
- Manual Roller Setting facility available
- Shear Pin for overload protection — standard on all models
- Equipped with safety system
- Centralised lubrication of main bearings while machine is running
- Overflow Flap with Pneumatic Cylinder to avoid jamming between Die & Rollers
- Built-in Hoist with lifting tools for easy & safe Die & Roller changes
- Integrated-type counter pulley
- SS Feeder with AC VFD
- Multi-Stage Retentioner & Conditioners
- Magnet in inlet spout
Optional Features
- Additional door safety lock synced with PLC
- Auto-Greasing system synchronised with PLC
- Temperature Sensor for Pellet Mill Motor
- Temperature Sensor at Pellet Inlet Spout
- VFD for Pellet Mill
Models Available — 2 to 30 TPH
- PM 900 (900×300) — 600 HP — 25–30 TPH
- PM 700 (700×300) — 425 HP — 20–22 TPH
- PM 660 (660×265) — 335 HP — 15–18 TPH
- Big Jumbo (600×178) — 270 HP — 10–12 TPH
- Super Senior Ex / Jumbo (520×178) — 220 HP — 8–10 TPH
- Super Senior (520×138) — 180 HP — 7–8 TPH
- Senior Extra Wide (420×138) — 150 HP — 6–7 TPH
- Senior (420×114) — 120 HP — 5–6 TPH
- Junior Extra Wide (305×90) — 75 HP — 2.5–3 TPH
- Junior (305×81) — 60 HP — 2–2.5 TPH
Get in touch
Need detailed specs or a quote?
Our engineering team will share drawings, capacity charts and pricing tailored to your plant.
Request Pellet Mill details →
