— RDSO Vendor Approval

Bridge & Structure — Fabrication of Steel Girders

HEPL is a specialised manufacturer of steel bridge girders, bridge components and structural steel for railway, metro and infrastructure projects — fabrication, welding, blasting, painting, inspection and quality assurance under RDSO and applicable standards.

Why Choose Us

Expertise in Structural Steel Fabrication
Controlled Manufacturing Processes
Qualified Technical Workforce
Comprehensive Inspection & Testing Facilities
Focus on Quality & Safety
Commitment to RDSO Compliance

Ownership & Registration

Ownership: Private Limited Company
Managing Director: Mr. Pratik Tongia
Director: Mrs. Charu Tongia
CIN: U00112MP1987PTC003868
PAN: AABCH0707P
GST: 23AABCH0707P1ZP

RDSO Approval

Sub-Directorate: Bridge & Structure
Item: Fabrication of Steel Girder
Status: Under Process
Annual Capacity: 18,000 MT

Factory License & MSME

Factory License No.: 74/14986/IND/2m(i)
Issued by: Chief Inspector of Factories, Madhya Pradesh
Valid up to: 31 December 2026
UDYAM Reg. No.: UDYAM-MP-23-0001836 (Medium Enterprise)

— Facilities (Unit-wise)

Unit 1 · Registered Office & Ancillaries

Ancillaries / Machine Shop Unit

E-55, E-56B, E-56A, D-51, D-52A, D-52B, Sector C, Sanwer Road, Industrial Area, Indore, M.P. — 452015

Phone: +91 (0731) 4278851 / 52 · info@hindustanengineering.in

Machine Shop — Precision Machining

DMG Mori 5-Axis Turn & Mill Machines (Germany) — 2 Nos.
BFW Vertical Lathe Machines (India) — 8 Nos.
Citizen 7-Axis Machine (Japan) — 1 No.
TOS Vertical Lathe (Czech Republic) — 1 No.
BFW Vertical Machining Center — 1 No.
Deep Hole / Gun Drilling Machines (China) — 10 Nos.
Mitutoyo CMM (Japan) & Zoller Tool Pre-setter (Germany)

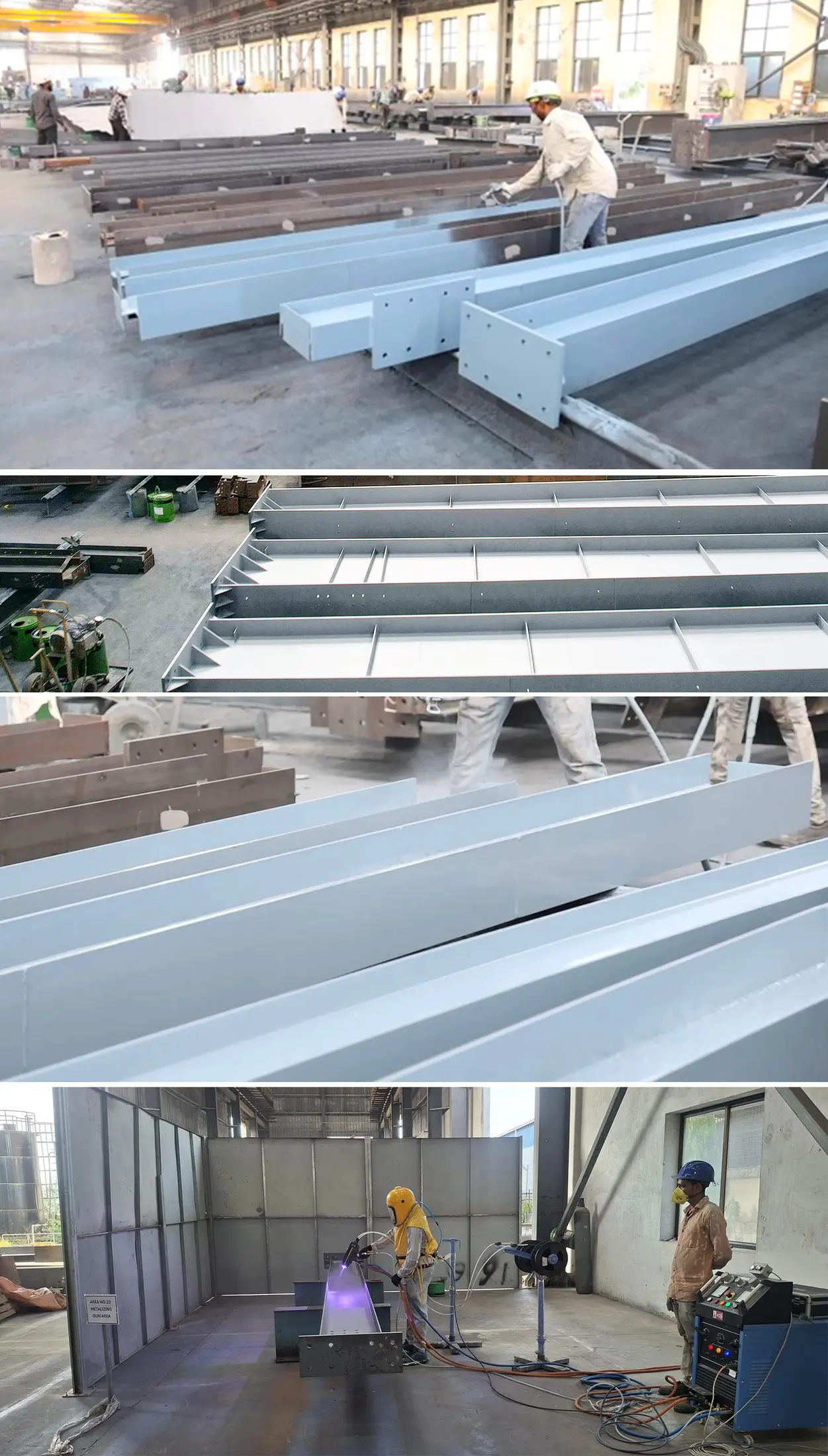

Light Fabrication, Painting & Metalizing

CNC Turret Punch Press — max punching force 180 kN
CNC Press Brake Machine
Radial Drill — up to 50 mm dia
Pneumatic tooling — Grinders, Drilling, Chipping, Torque Wrenches, Elcometer, Surface Roughness Tester, calibrated steel tapes
Painting line — Compressor with Gun, Spray Gun with agitator
Metalizing — Metal Arc Spray Machine 600 A

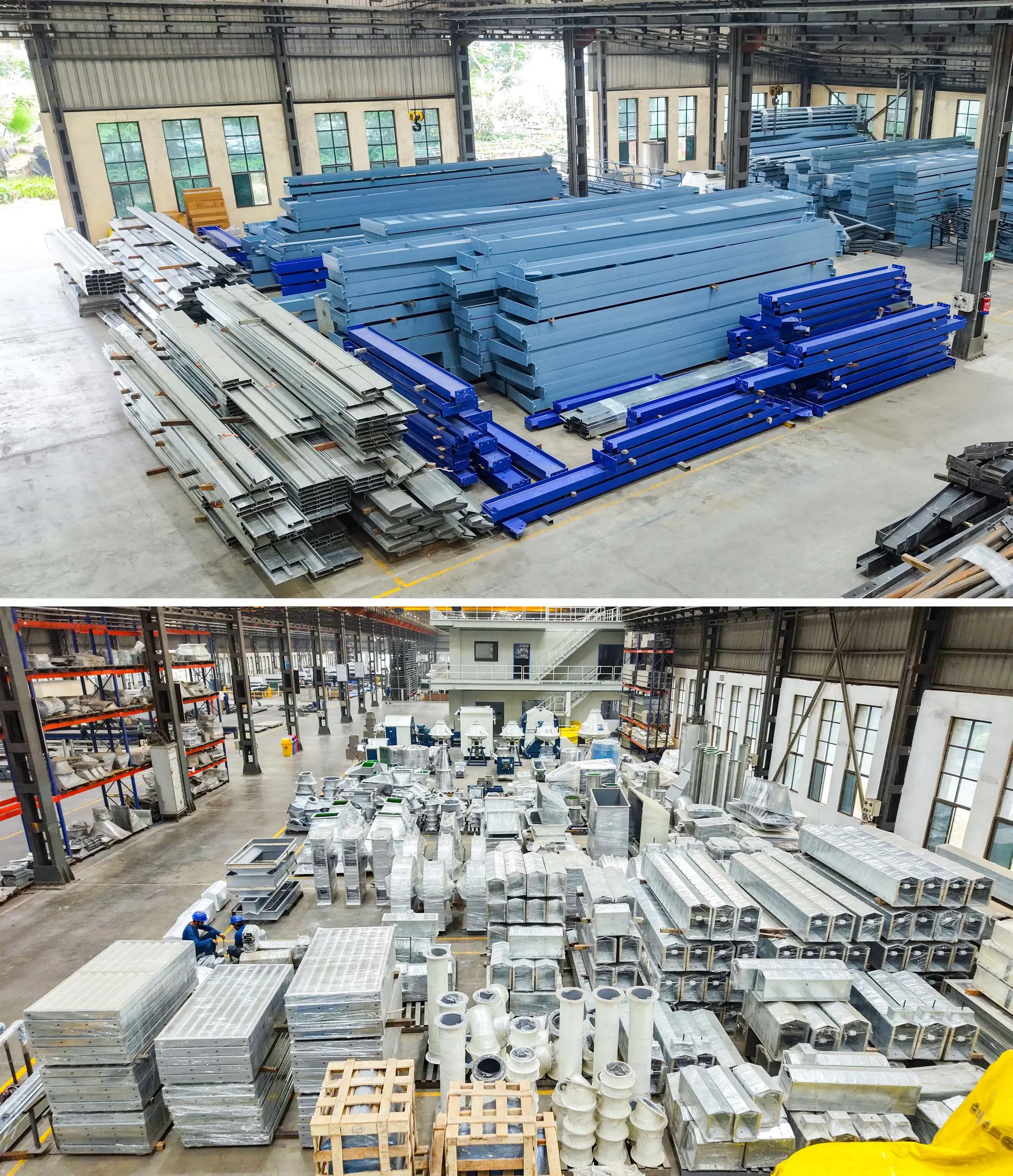

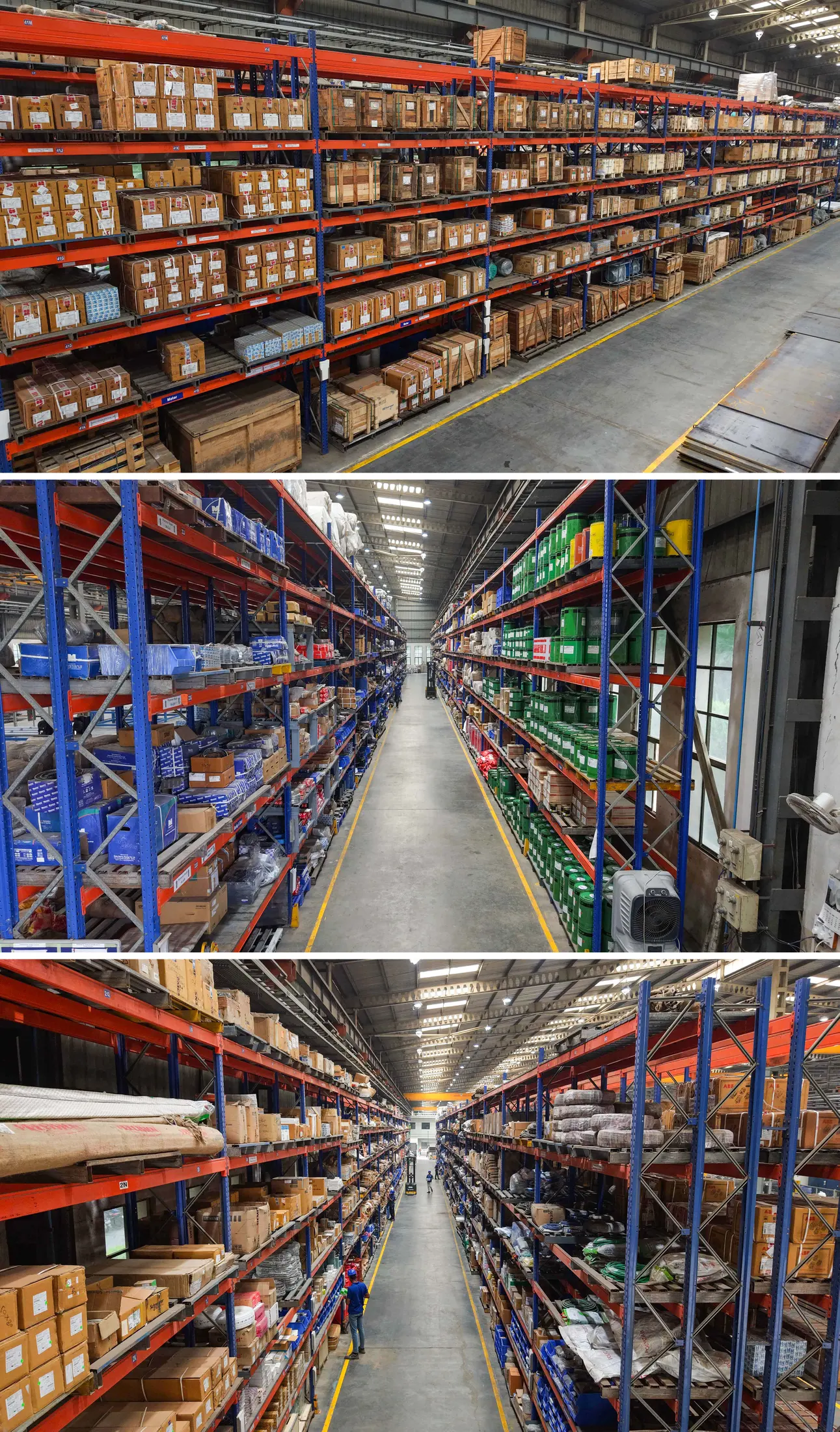

Store, BOP and finished goods staging

Unit 2 · Main Fabrication

Steel Girder & Heavy Fabrication Unit

Survey Nos. 5/2/2, 5/3/2, 5/4/2, 5/2, 5/3, 5/4, (K) 44/1, 5/5, 5/2/1, 5/3/1, 5/4/1, 5/1/3, 5/1/1, Village Bardari, Tehsil Sanwer, Dist. Indore, M.P. — 453555

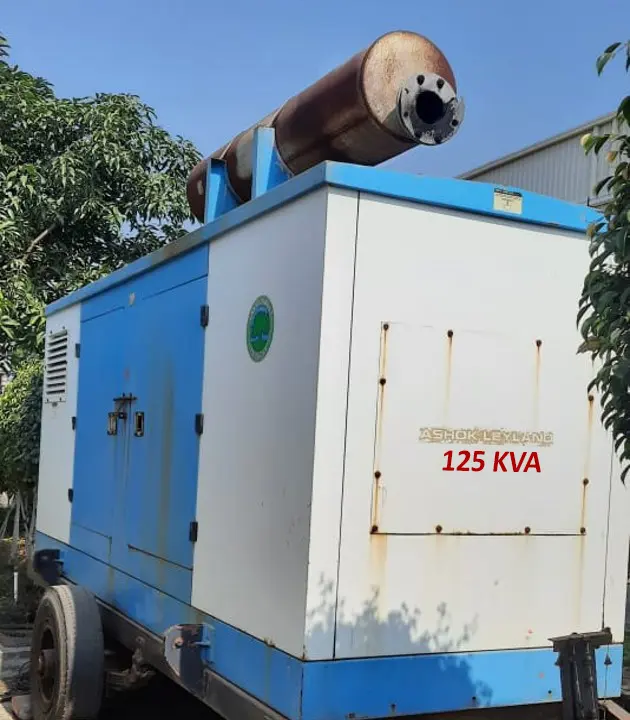

Power: 2000 KVA 33 KV / 415 V Transformer · DG Backup 125 KVA

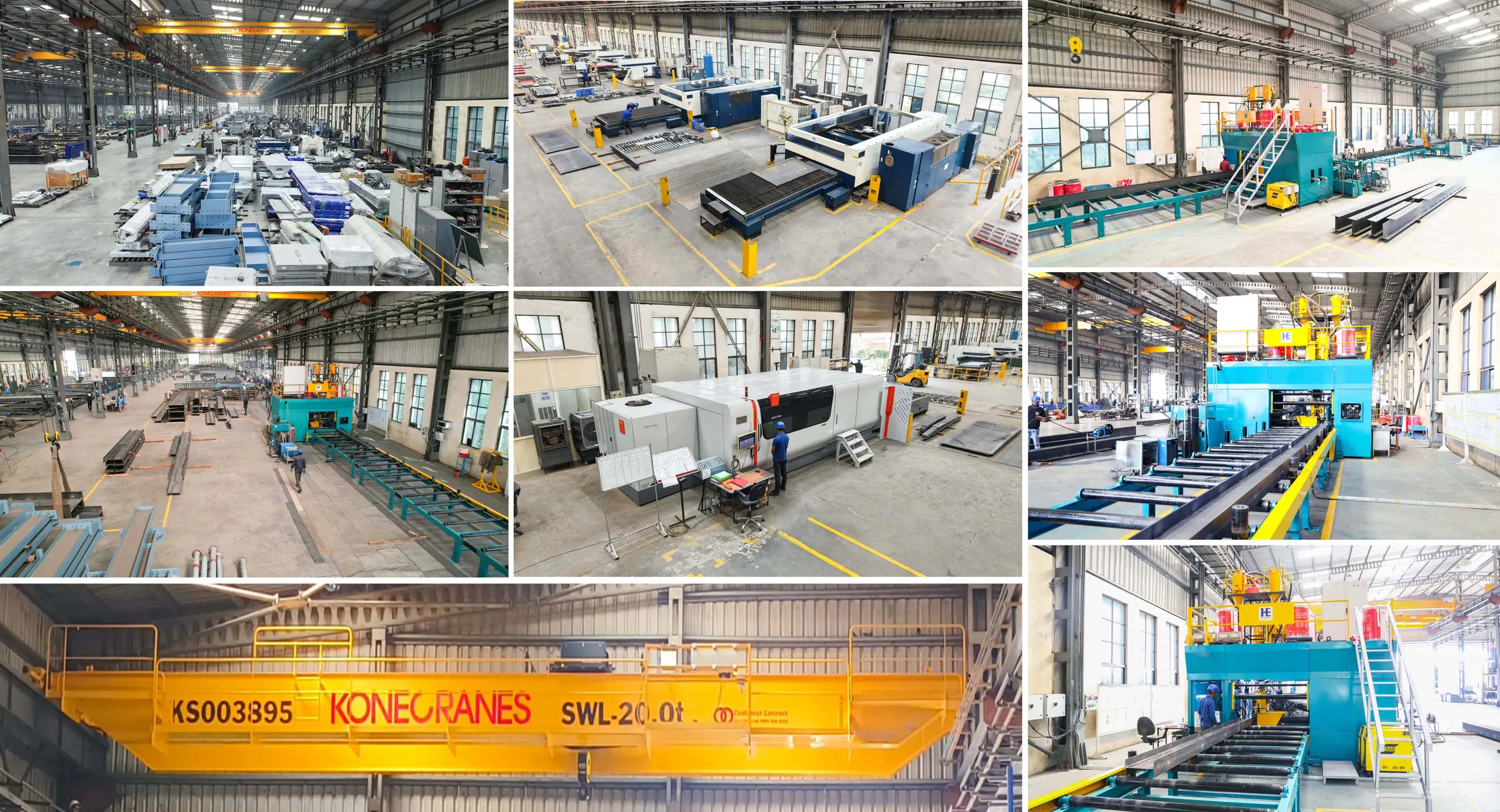

Heavy Fabrication Shop

CNC Laser Cutting Machine (TRUMPF TruLaser 3040, Bystronic ByStar Fiber 4020) — up to 30 mm
CNC Oxyfuel Cutting — up to 100 mm MS

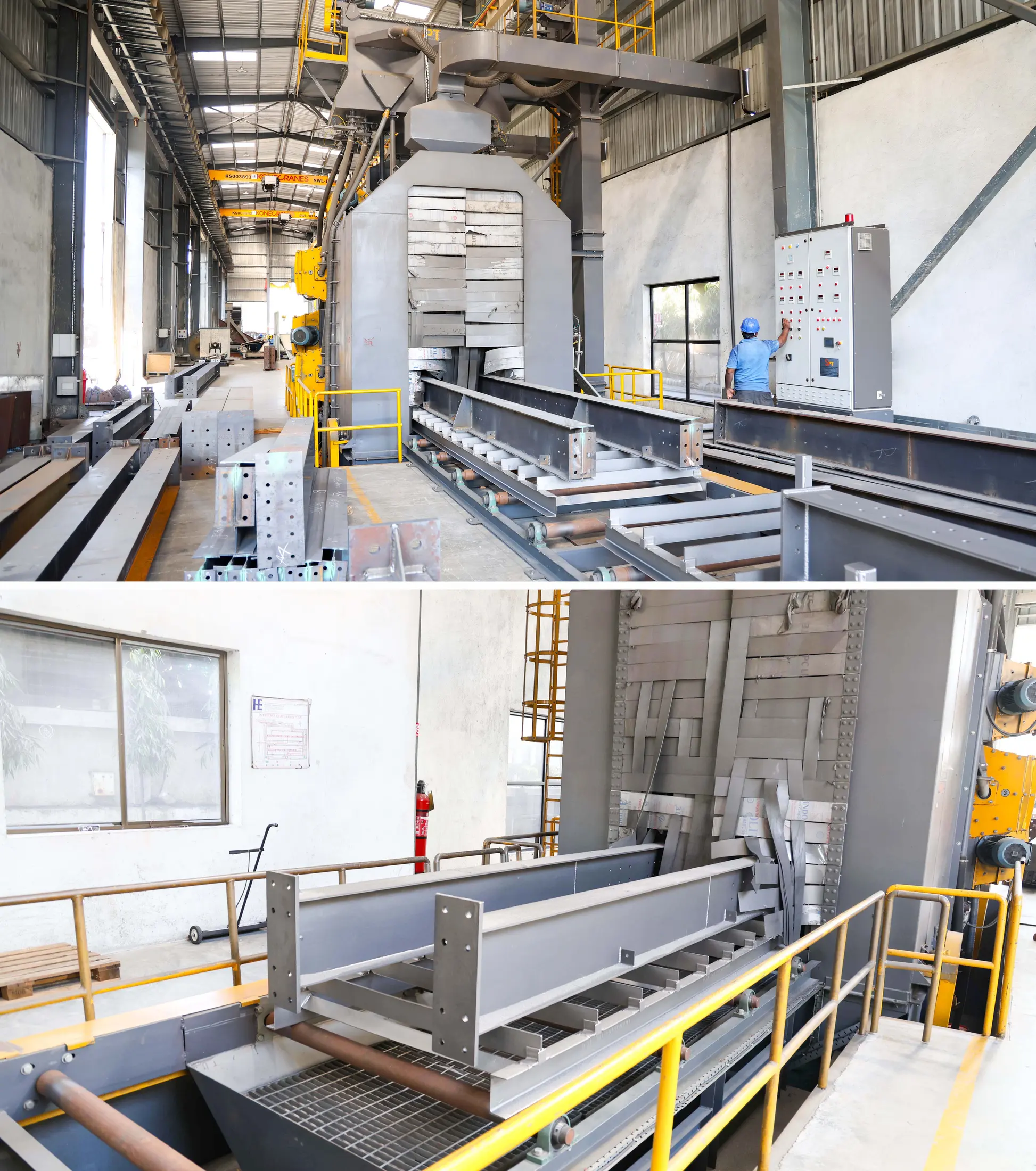

Shot Blasting Machine (SPT 10-Wheel) for surface preparation — components up to 3000 × 1500 × 15000 mm
H-Beam SAW Welding Line (Primo ABW-1500) — beam length 2.5–13 m
Three-Roll Bending Machine (in-house) — up to 20 mm thick
Hydraulic Bus-Bar Bending, Punching & Shearing (Namsung, Korea)
Straightening & Roller Bending Machine
EOT Cranes 20 T & 10 T, Farana 17 T, Hydra 16 T
Atlas Copco GA75 VSD Screw Compressor
Total Station facility for layout & assembly

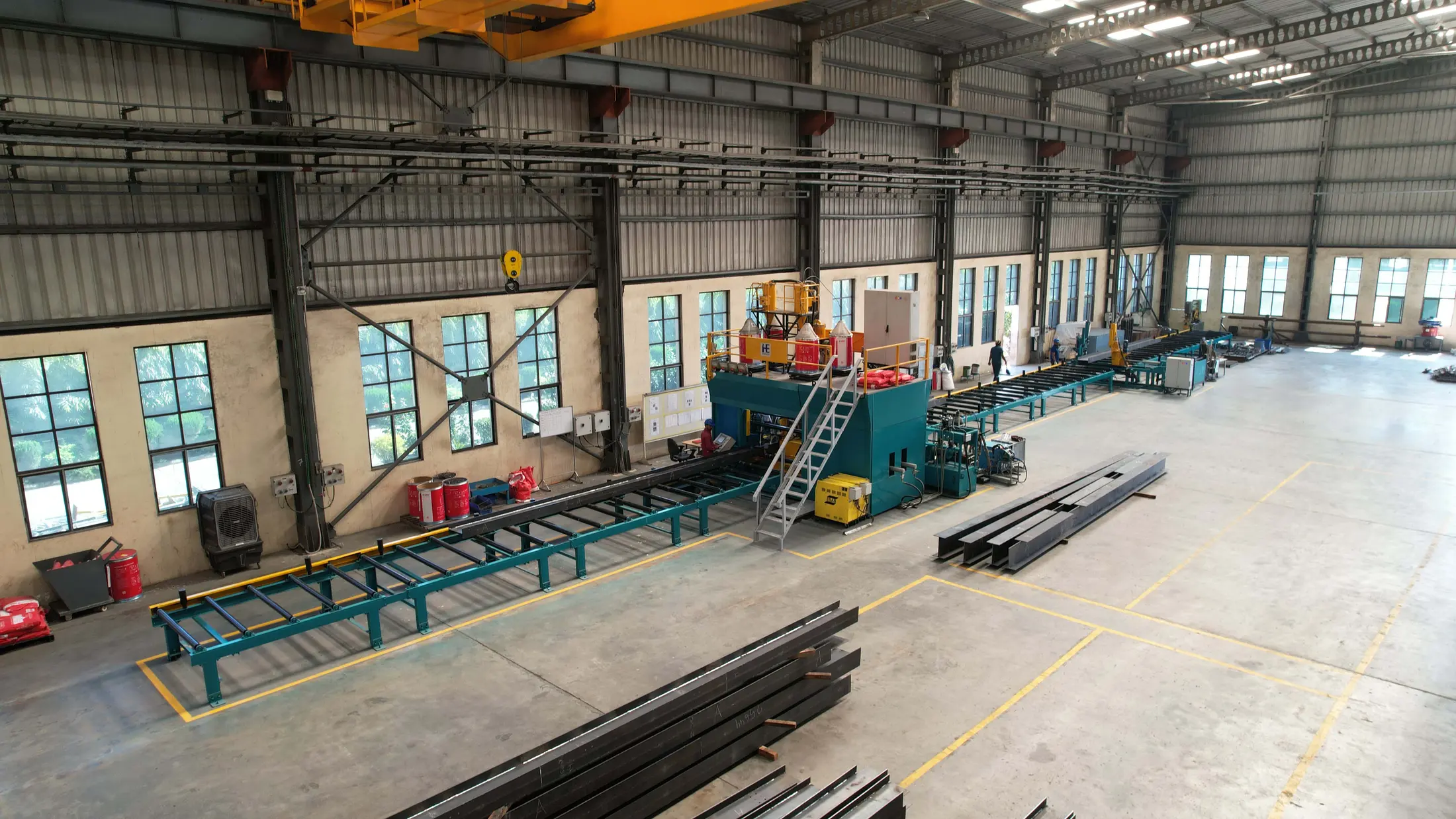

Welding Machines & Personnel

Arc Welding (450 A, 500 A)
MIG Welding (400 / 500 / 600 A)
Pulse TIG Welding (310 A, 400 A)
SAW Welding (1200 A)
Manual Gas Cutting with Blowpipe
Stud Welding Machine
Tongue tester, weld-size / throat-thickness / edge-preparation gauges
Certified welders & welding supervisors on payroll

Non-Destructive Testing (Shop)

Ultrasonic Flaw Detection (Modsonic Einstein-II DGS, Arjun 30)
Dye-Penetrant Testing
Phased Array Ultrasonic Testing — Olympus OmniScan MX2
Radiography Testing (MOU with external agency)

Heat Treatment

Seco/Warwick Vacuum Furnace (Poland) — up to 1300 °C, 2500 kg load
Pit Type Furnaces (Aditya Thermal, India) — up to 1000 °C, 5 furnaces
Induction Hardening (Inductotherm Inductoscan) — 325 kW, case depth 3–10 mm

Unit 2 · NABL Testing Laboratory

ISO/IEC 17025:2017 Accredited

Chemical Testing

Spectrometer Analysis — Carbon Steel (low / medium / high), Stainless Steel, Aluminium & alloys, Copper & alloys, Tool Steel

Mechanical Testing

Universal Testing Machine (UTM) — Tensile, Yield, % Elongation, Proof Load for Fasteners
Micro Vickers Hardness (HV 1, HV 0.3) — Case Depth
Rockwell Hardness — HRA, HRBW, HRC, HR15N, HR15TW, HR30N, HR30TW, HR45TW, HR45N
Brinell Hardness — Steel Products (10/3000), Non-Ferrous (5/750)

Metallography
